For a long time, we’ve wanted to cut metal in our shop. But if you’ve only ever operated a desktop diode laser or a standard CO2 machine, jumping into the world of industrial metal cutting can feel like stepping into a completely different dimension.

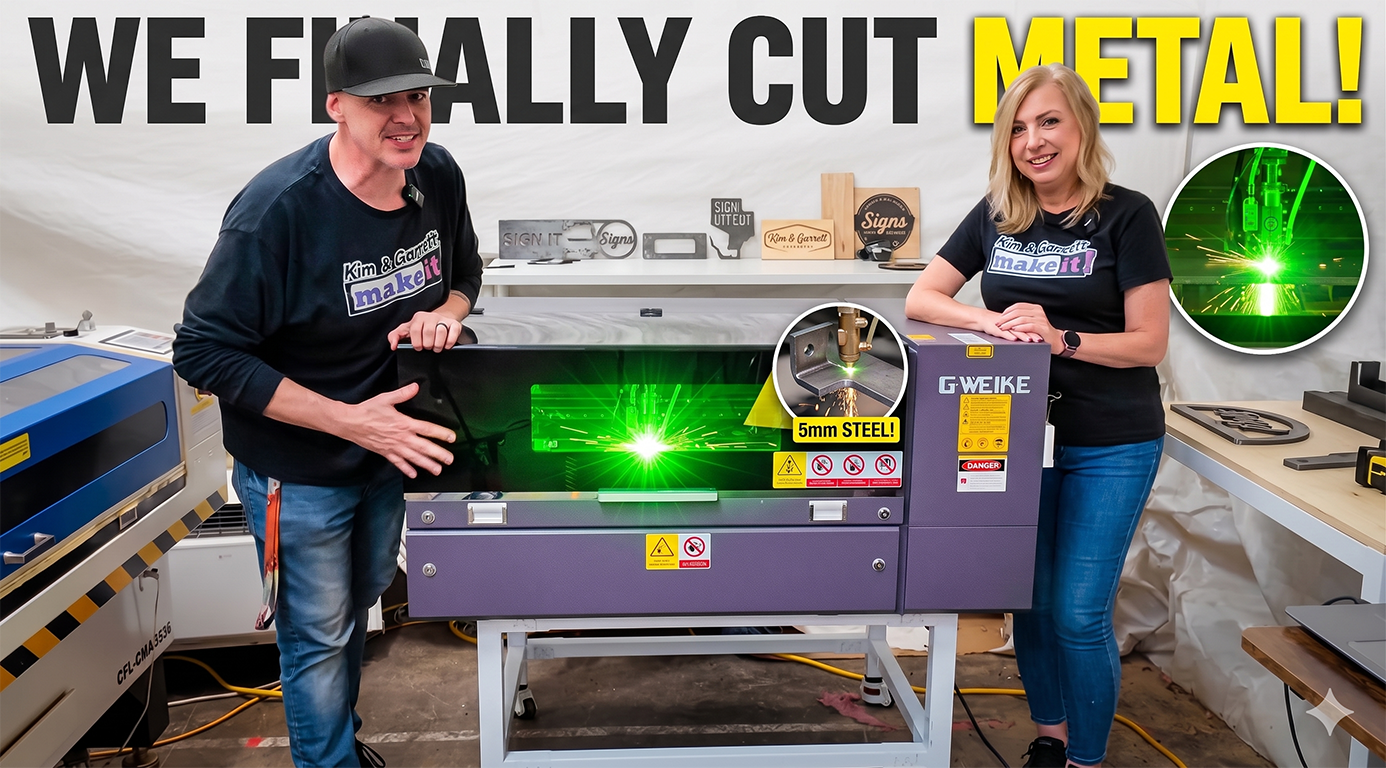

Today, we are taking an honest, data-driven look at the new Gweike Cloud M Core. This machine positions itself as an all-in-one hybrid beast, combining a 400W Fiber Laser and an 80W CO2 Laser under one hood.
Gweike Cloud M Core: https://gweikelaser.kckb.me/kandgmakeit
Is it actually useful for growing makers and creative small businesses, or is it just overcomplicated hype? Let's break down the specs, our setup mistakes, the actual material test results, and the hard business math.
Watch our full operational breakdown and stress test below:
The Specs: Two Lasers, One Machine
The M Core features a 16" x 28" cutting area, automatic fish-eye correction via a lid-mapped panoramic camera, and upgraded servo motors (running up to 1,200 mm/s) instead of standard stepper motors.
The core selling point is the dual-source setup, allowing you to toggle between two completely different laser technologies inside the same software workflow:
| Feature / Laser Source | 80W CO2 Laser | 400W Fiber Laser |
| Primary Use Case | Organic materials (Wood, Acrylic, Leather) | Metals (Steel, Aluminum, Brass, Precious Metals) |
| Max Capacity Tested | Up to 3/4" (20mm) Clear Acrylic | Up to 5mm Carbon Steel |
| Cooling & Utility | Internal water chiller & standard air assist | High-pressure gas/air system required |
The Reality Check: Hidden Utility Requirements
Before you back a high-powered machine like this, you need to know exactly what it takes to run it. We made a few assumptions before the prototype arrived, and the user manual quickly corrected us.
1. The Air Compressor Warning
To clear hot, sticky molten debris when cutting metal with shop air, a standard built-in air assist will not cut it. The manual specifies a continuous requirement of 8.5 CFM at 130 PSI.
Our standard shop compressor maxes out at 7.7 CFM at 90 PSI, meaning it couldn't keep up. Unless you already own an industrial-grade rotary screw or massive dual-stage compressor, we highly recommend purchasing the dedicated air compressor accessory offered with the machine.
2. The Industrial Gas Setup (Learn From Our Mistake)
Because our shop compressor wasn't beefy enough, we opted to use the machine's alternative gas system, which utilizes pressurized oxygen ($O_2$) and nitrogen ($N_2$).
Pro-Tip: If you go to a local gas dealer to source your tanks, pay the $35 delivery fee. We tried to save a buck by hauling two 100-pound industrial tanks in the back of our SUV. Between the muscle required to load them alone and the terrifying clanging in the back seat on the drive home, it is absolutely not worth the wear and tear on your back.
On the positive side, you only need industrial-grade gas, not ultra-pure medical-grade gas, which keeps operational consumable costs down. Once hooked up to the regulators, the machine seamlessly manages the gas switching depending on whether you are cutting stainless or carbon steel.
Material Test Results: Pushing the Limits
We ran the M Core through a gauntlet of standard and industrial materials to see if it lived up to the production claims.
CO2 Testing (Wood & Acrylic)
The CO2 side performed identically to high-end dedicated 80W cabinets.
-
Basswood & Birch: Clean, fast cuts on standard 1/8" and 1/4" sheets.
-
MDF: Flew through 1/4" MDF with minimal charring.
-
Clear Acrylic: Handled 1/4" cleanly. The machine is rated to cut up to 20mm (3/4") clear acrylic, making it an excellent option for heavy commercial signage.
Fiber Testing (The Heavy Metals)
This is where the machine completely alters the production landscape for a small shop.
-
1mm Aluminum: Clean, incredibly fast cuts. Perfect for creating custom blanks for UV printing or outdoor street signs.
-
1mm - 3mm Stainless Steel: Immaculate edge quality. Excellent rigidity for jewelry blanks, custom tags, or intricate mechanical parts.
-
Carbon Steel (1mm up to 5mm): Carbon steel is roughly a third of the price of stainless steel. The M Core tore through 1mm to 4mm carbon steel at speeds comparable to cutting wood on a CO2 system. We pushed it to the absolute limit with a 5mm thick piece (weighing over 20 pounds). It successfully completed the cut, though the piece required a light tap to pop out of the nest.
The Business Case: The High Perceived Value of Metal
Why should a creative business care about adding fiber metal-cutting capabilities? It comes down to market data and consumer psychology at craft shows and online marketplaces.
If you sell front porch decor or custom signage, you have likely run into price resistance on complex items. A customer might hesitate to spend $55 on a multi-layered, meticulously hand-painted 3D wood sign because they associate wood with hobby crafting.
However, place a flat, single-layer metal monogram or address sign next to it, and that same customer will happily hand over $75 without blinking. Metal carries a fundamentally higher perceived value. It communicates permanence, weather resistance, and professional manufacturing.
By utilizing the M Core, a small business can produce:
-
Custom metal monograms and address stakes for lawns.
-
Durable aluminum blanks for high-margin UV-printed signage.
-
Commercial parking and directional signs for local B2B clients.
-
High-volume wholesale jewelry blanks in brass, silver, and gold.
Final Verdict: Is It Worth It?
The Gweike Cloud M Core is a machine that effectively blurs the line between a boutique maker space and a small-scale manufacturing facility.
The Kickstarter campaign is live right now. With a $199 refundable deposit, the early-bird pricing sits at $4,699. When you consider that a baseline, entry-level 80W CO2 laser from major domestic brands routinely costs around $4,800 on its own, getting a bonus 400W industrial fiber laser built into the exact same footprint for less money is an incredibly disruptive value proposition.
If you have the shop space, the budget for a heavy-duty air compressor or gas setup, and a strategy to target high-margin metal products, this machine is a serious business evolution tool.
Are you planning to add metal to your product catalog this year? Let us know your thoughts in the comments below!
