How to Clean and Align Your Laser Cutter's Mirrors and Lens

Maintaining the alignment of your laser cutter’s mirrors and lens is essential for getting accurate and precise cuts from your machine. If your laser cutter’s mirrors and lens become dirty or out of alignment, it can cause a variety of issues with your laser cutter’s performance. Fortunately, cleaning and aligning your laser cutter’s mirrors and lens is a straightforward process. In this blog post, we will discuss the steps you need to take to properly align your laser cutter’s mirrors and lens.

Tools you will need

No matter what type of laser cutter you have, there are a few essential tools that you need in order to properly clean and align its mirrors and lens. You will need isopropyl alcohol, cotton swabs and lens cleaner pads. And don't forget to wear safety glasses - you don't want any rogue laser beams coming your way! Fun fact: the process of cleaning and aligning your laser cutter's mirrors and lens is called 'alignment of optical elements', which is a critical step to ensuring the quality of laser cutting.

Preparing your work area

Before you can clean and align your laser cutter's mirrors and lens, you need to get your workspace ready. To do this, you'll need some basic tools and supplies: a soft cloth, alcohol or window cleaner, and a Phillips screwdriver. Make sure that the area you're working in is clean and clear of any other items.

Once everything is ready, the next step is to take off the cover plate for the laser head. You'll need to use the screwdriver to remove the screws so be careful not to strip them. Once the cover plate is off, you'll be able to access the mirrors and lens.

Fun Fact: Did you know that laser cutters are often used to produce intricate works of art? Cleaning and aligning your laser cutter's mirrors and lens will ensure that your artwork is as precise and accurate as possible! Now that you know the importance of cleaning and aligning your laser cutter's mirrors and lens, it's time for the fun part: actually doing it! You'll need a steady hand, a little bit of patience, and a few Q-tips for this job. You'll want to be extra careful not to touch the mirrors or lens with your hands or the Q-tip, since this can affect the accuracy of the alignment. Once you're done, your laser cutter will be ready for some precision cutting! Clean and align your laser cutter mirrors and lens today and you'll be rewarded with perfect cuts every time. Did you know that your laser cutter is an incredible precision instrument? Cleaning and aligning your laser cutter mirrors and lens can help ensure that it performs at its best every time you use it. Even a small misalignment can result in skewed lines or imperfect cuts. But with proper care and maintenance, your laser cutter will be sure to perform perfectly every time! So take the time to clean and align your laser cutter mirrors and lens, and reap the rewards of precise and accurate artwork!

Cleaning the mirrors

When it comes to cleaning the mirrors on your laser cutter, there are a few important steps you should take. The first step is to make sure that you have all the necessary tools ready and that your work area is clean and organized. You will need a clean cloth, compressed air, and lens cleaning solution.

Once you have everything ready, you can begin the process of cleaning the mirrors. Start by wiping them down with the cloth to remove any dust or debris. Then, using the compressed air, blow away any remaining particles. Be careful not to apply too much pressure as you could potentially damage the mirrors.

Finally, use the lens cleaning solution to remove any oils or residues that may be left on the mirrors. Make sure that you don't put too much of the solution on the cloth, as this can cause streaks or blemishes.

Fun fact: The process of cleaning and aligning laser cutter mirrors and lenses is incredibly precise, and any imperfections can cause the machine to not function correctly!

Cleaning the lens

When it comes to cleaning and aligning your laser cutter's lens, the most important thing to remember is that you must handle it with care. The lens is a delicate and sensitive component of your laser cutter that can easily be damaged if not treated correctly. The first step in the process is to prepare a clean area to work on. You'll need some lint-free wipes and distilled water to start.

Before you do anything else, make sure you turn off your laser cutter so that you don't accidentally damage it. Then, carefully remove the lens from its housing. Gently clean both sides of the lens with a lint-free wipe that has been dampened with distilled water. This helps to remove any dust or dirt particles that may have accumulated on the surface.

As an interesting fun fact, the word "lens" actually comes from the Latin word for lentil! So, next time you're cleaning and aligning your laser cutter's mirrors and lens, you can think about how you're caring for your very own mini lentil! After you've cleaned the lens, make sure it is completely dry before you place it back in its housing.

Realigning the mirrors

It’s time to get your Laser Cutter mirrors back in line! Thankfully, it’s not as hard as it may seem. All you need is a steady hand and a little patience.

Start by loosening the two screws on each side of the mirror. Be careful not to move them too much, as you don’t want the mirror to be off-center. You can then use a ruler to measure from the edges of the mirror to the laser beam. When you’re happy with the measurements, tighten the screws again, being careful not to over-tighten them.

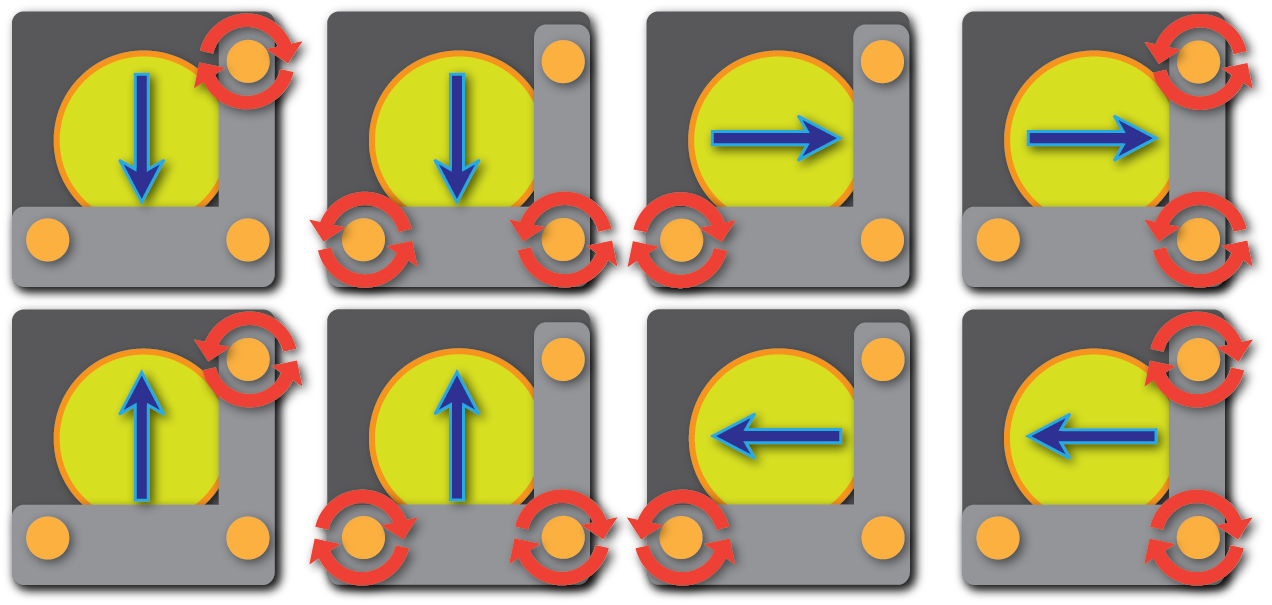

Next, you can adjust the angle of the mirrors by using the small set screws at the top and bottom of each one. Turn these very slowly, making sure to check the position of the laser beam periodically, until it is correctly aligned.

Fun Fact: Mirrors play an important role in laser cutting – they reflect and redirect the laser beam in order to ensure precise and accurate cuts. Now you know how to Clean and Align Laser Cutter Mirrors and Lens!

Realigning the lens

The next step in ensuring your laser cutter is working perfectly is to realign the lens. This can be a tricky process and should only be done by experienced professionals.

First, you'll want to use a lens wrench to remove the lens from the laser cutter and set it aside. Then you'll want to use a precision screwdriver to adjust the collimation screws on the lens until you achieve optimal beam focus. Once you have achieved optimal focus, you can re-attach the lens to the laser cutter with the same lens wrench.

It's important to take your time when cleaning and aligning your laser cutter's mirrors and lens, as this will help keep your machine running like new for many years. Plus, if you do it correctly, you can save yourself from potential damage to your laser cutter!

Fun Fact: The term "collimation" means that all parallel rays of light, such as those generated by a laser, are concentrated on the same point after passing through the Clean and Align Laser Cutter Mirrors and Lens!

Testing the alignment

It's time to see if all the hard work of cleaning and aligning your laser cutter's mirrors and lens has paid off! To make sure everything is lined up correctly, you'll need to perform a few tests.

First, set up a test target. For example, try printing out a piece of paper with a series of lines, squares, or other shapes on it. Place this sheet underneath the laser head and turn it on. If all the lines, shapes, and dots are precise and uniform, then your mirrors and lens are correctly aligned!

Fun Fact: Did you know that the majority of today's laser cutters use three lenses, two mirrors, and a focusing tube to accurately cut shapes and objects?

Now that you know how to clean and align your laser cutter's mirrors and lens, you can easily keep your equipment in top condition for a smooth cutting experience. Always remember that precise alignment is essential for consistent accuracy, so be sure to take the time to check your machine regularly.
